Reusable Hose Fitting
00518
SAE 100 R5
FERRULE FOR SAE 100 R5 HOSE
| P/N. | HOSE BORE | DIMENSIONS |
| DN | DASH | L | S |
| 00518-04 | 5 | 4 | 28 | 17 |
| 00518-05 | 6 | 5 | 30.5 | 19 |
| 00518-06 | 8 | 6 | 33 | 22 |
| 00518-08 | 11 | 8 | 42 | 24 |
| 00518-10 | 13 | 10 | 45.5 | 30 |
| 00518-12 | 16 | 12 | 53.5 | 32 |
| 00518-16 | 22 | 16 | 42 | 36 |
| 00518-20 | 28 | 20 | 44.5 | 46 |
| 00518-24 | 35 | 24 | 47 | 50 |
| 00518-32 | 46 | 32 | 57 | 65 |
15618-R5
SAE 100 R5
NPT MALE FOR SAE 100 R5 HOSE
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS |
| DN | DASH | S1 |
| 15618-02-04(R5) | Z1/8"X27 | 5 | 4 | 12 |
| 15618-04-04(R5) | Z1/4"X18 | 5 | 4 | 17 |
| 15618-04-06(R5) | Z1/4"X18 | 8 | 6 | 17 |
| 15618-06-05(R5) | Z3/8"X18 | 6 | 5 | 19 |
| 15618-06-06(R5) | Z3/8"X18 | 8 | 6 | 19 |
| 15618-08-08(R5) | Z1/2"X14 | 11 | 8 | 22 |
| 15618-12-10(R5) | Z3/4"X14 | 13 | 10 | 30 |
| 15618-12-12(R5) | Z3/4"X14 | 16 | 12 | 30 |
| 15618-16-16(R5) | Z1"X11.5 | 22 | 16 | 36 |
| 15618-20-20(R5) | Z1.1/4"X11.5 | 28 | 20 | 46 |
| 15618-24-24(R5) | Z1.1/2"X11.5 | 35 | 24 | 50 |
| 15618-32-32(R5) | Z2"X11.5 | 46 | 32 | 65 |
12618-R5
BSP MALE 60 CONE SEAT
| P/N. | THREAD E | HOSE BORE | DIMENSIONS |
| DN | DASH | S1 |
| 12618-04-04 | 1/4"X19 | 5 | 4 | 17 |
| 12618-06-06 | 3/8'X14 | 8 | 6 | 22 |
| 12618-08-08 | 1/2"X14 | 11 | 8 | 24 |
| 12618-10-10 | 5/8"X14 | 13 | 10 | 30 |
| 12618-12-12 | 3/4"X14 | 16 | 12 | 32 |
| 12618-16-16 | 1"X11 | 22 | 16 | 36 |
| 12618-20-20 | 1.1/4"X11 | 28 | 20 | 46 |
| 12618-24-24 | 1.1/2"X11 | 35 | 24 | 50 |
| 12618-32-32 | 2"X11 | 46 | 32 | 65 |

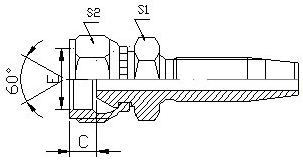

22618D(R5)
BSP FEMALE 60 CONE
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS |
| DN | DASH | C | S1 | S2 |
| 22618D-04-04(R5) | 1/4"X19 | 6 | 4 | 5.5 | 19 | 19 |
| 22618D-06-05(R5) | 3/8"X19 | 8 | 5 | 6.5 | 22 | 22 |
| 22618D-06-06(R5) | 3/8"X19 | 10 | 6 | 6.5 | 22 | 22 |
| 22618D-08-08(R5) | 1/2"X14 | 12 | 8 | 8 | 27 | 27 |
| 22618D-10-10(R5) | 5/8"X14 | 16 | 10 | 10.5 | 27 | 30 |
| 22618D-12-12(R5) | 3/4"X14 | 20 | 12 | 11.5 | 32 | 32 |
| 22618D-16-16(R5) | 1"X11 | 25 | 16 | 11.5 | 41 | 41 |
| 22618D-20-20(R5) | 1.1/4"X11 | 32 | 20 | 12 | 46 | 50 |
| 22618D-24-24(R5) | 1.1/2"X11 | 40 | 24 | 13 | 50 | 55 |
16718-R5
JIC MALE 74 CONE
| P/N. | THREAD | HOSE BORE | DIMENSIONS |
| DN | DASH | C | S |
| 16718-04-04 | 7/16"X20 | 5 | 4 | 14 | 17 |
| 16718-05-05 | 1/2"X20 | 6 | 5 | 14.2 | 19 |
| 16718-06-06 | 9/16'X18 | 8 | 6 | 15.7 | 22 |
| 16718-08-08 | 3/4"X16 | 11 | 8 | 17 | 24 |
| 16718-10-10 | 7/8"X14 | 13 | 10 | 19 | 30 |
| 16718-12-12 | 1.1/16"X12 | 16 | 12 | 19 | 32 |
| 16718-16-16 | 1.5/16"X12 | 22 | 16 | 22 | 36 |
| 16718-20-20 | 1.5/8"X12 | 28 | 20 | 22 | 46 |
| 16718-24-24 | 1.7/8"X12 | 35 | 24 | 24 | 50 |
| 16718-32-32 | 2.1/2"X12 | 46 | 32 | 24 | 65 |
17818-R5
SAE MALE 90 CONE
| P/N. | THREAD E | HOSE BORE | DIMENSIONS |
| DN | DASH | C | S1 |
| 17818-04-04 | 7/16"X20 | 6 | 4 | 14 | 14 |
| 17818-05-05 | 1/2"X20 | 8 | 5 | 14.2 | 14 |
| 17818-06-06 | 5/8"X18 | 10 | 6 | 15.7 | 17 |
| 17818-08-08 | 3/4"X16 | 12 | 8 | 17 | 22 |
| 17818-10-10 | 7/8"X14 | 16 | 10 | 22 | 24 |
| 17818-12-12 | 1.1/16"X12 | 20 | 12 | 22.4 | 27 |
26718D(R5)
JIC FEMALE 74 CONE SEAT
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS |
| DN | DASH | C | S1 | S2 |
| 26718D-04-04(R5) | 7/16"X20 | 5 | 4 | 8.5 | 14 | 17 |
| 26718D-05-05(R5) | 1/2"X20 | 6 | 5 | 9.5 | 14 | 17 |
| 26718D-06-06(R5) | 9/16"X18 | 8 | 6 | 9.5 | 17 | 19 |
| 26718D-08-08(R5) | 3/4"X16 | 11 | 8 | 10 | 22 | 24 |
| 26718D-10-10(R5) | 7/8"X14 | 13 | 10 | 11 | 27 | 27 |
| 26718D-12-12(R5) | 1.1/16"X12 | 16 | 12 | 13.5 | 32 | 32 |
| 26718D-16-16(R5) | 1.5/16"X12 | 22 | 16 | 14.5 | 38 | 41 |
| 26718D-20-20(R5)W | 1.5/8"X12 | 28 | 20 | 15.5 | 41 | 50 |
| 26718D-24-24(R5)W | 1.7/8"X12 | 35 | 24 | 18.5 | 46 | 55 |
| 26718D-32-32(R5)W | 2.1/2"X12 | 46 | 32 | 24.5 | 65 | 75 |
Note: apply to SAE 100 R5 hose

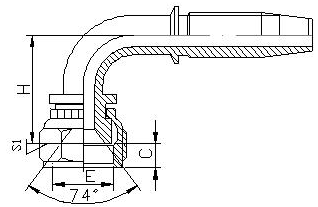

26798(R5)
SAE FEMALE 74 CONE SEAT
| PA/RT NO. | TH/READ E | HOSE BORE | DIMENSIONS |
| DN | DASH | C | H | S1 |
| 26798D-04-04(R5) | 7/16"X20 | 5 | 4 | 8.5 | 33.5 | 14 |
| 26798D-05-05(R5) | 1/2"X20 | 6 | 5 | 9.5 | 37 | 14 |
| 26798D-06-06(R5) | 5/8"X18 | 8 | 6 | 10 | 39.3 | 17 |
| 26798D-08-08(R5) | 3/4"X16 | 11 | 8 | 11 | 47.5 | 19 |
| 26798D-10-10(R5) | 7/8"X14 | 13 | 10 | 11 | 52.5 | 24 |
| 26798D-12-12(R5) | 1.1/16"X14 | 16 | 12 | 13.5 | 63.5 | 27 |
| 26798D-16-16(R5) | 1.5/16"X12 | 22 | 16 | 14.5 | 70 | 32 |
| 26798D-20-20(R5)W | 1.5/8"X12 | 28 | 20 | 15.5 | 82.5 | 38 |
| 26798D-24-24(R5)W | 1.7/8"X12 | 35 | 24 | 18.5 | 97.5 | 46 |
| 26798D-32-32(R5)W | 2.1/2"X12 | 46 | 32 | 24.5 | 118.8 | 60 |
Note: Apply to SAE 100 R5 hose
27818D(R5)
SAE FEMALE 90 CONE SEAT
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS |
| DN | DASH | C | S1 | S2 |
| 27818D-04-04(R5) | 7/16"X20 | 5 | 4 | 9 | 14 | 17 |
| 27818D-05-05(R5) | 1/2"X20 | 6 | 5 | 9 | 14 | 17 |
| 27818D-06-06(R5) | 5/8"X18 | 8 | 6 | 11.3 | 17 | 19 |
| 27818D-08-08(R5) | 3/4"X16 | 11 | 8 | 10.5 | 22 | 24 |
| 27818D-10-10(R5) | 7/8"X14 | 13 | 10 | 12 | 27 | 27 |
| 27818D-12-12(R5) | 1.1/16"X14 | 16 | 12 | 14.3 | 32 | 32 |
Note: apply to SAE 100 R5 hose
